It is used as Agricultural Irrigation Board.
There is a handle for opening the cover and suitable for sealing from the middle point above the covers of the compartments inside the panel, while the lower cover is in a structure that can be locked with a padlock and has the required strength.
For the mounting of the panel to the round cross-section poles, there is a perforated galvanized sheet metal band from the lower and upper edges to wrap the poles of all sizes.
There are intermediate registers that prevent stretching and bending on the panel cover.

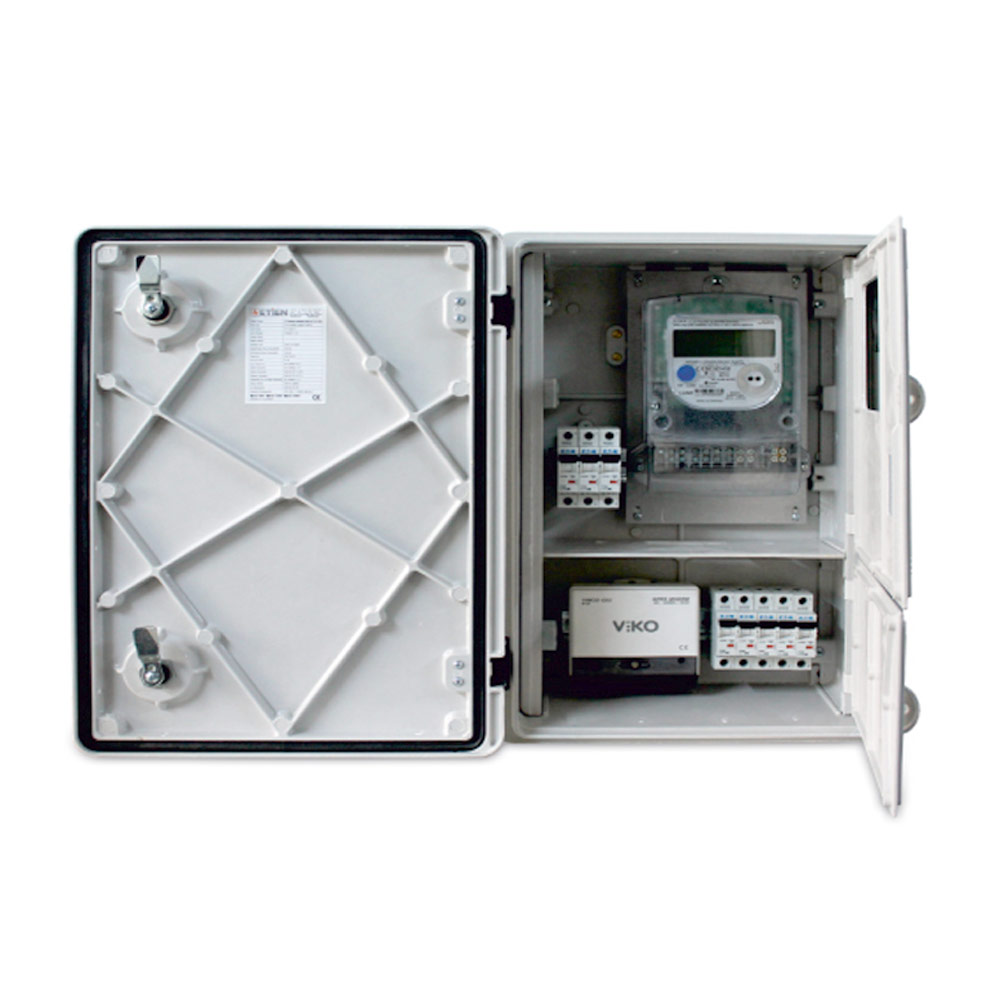

The interior of the panel consists of two parts, an upper and a lower part. W vending machine and meter installation suitable for three-phase system in the upper section, W vending machine and modem installation in the lower section (customer section). The height of the upper section is suitable for mounting all kinds of electronic meters.
Inner and outer covers are opened in opposite directions, and the outer cover opening angle is more than 180°.
The outer main cover of the panel is in one piece and is hinged to the body. Internal partitions are at least 2 mm. It has two separate doors made of glass fiber reinforced polyester material and the doors are internally hinged so that they cannot be interfered with from the outside. There is suitable spacing for cable passage between the compartments.
Common Specifications
